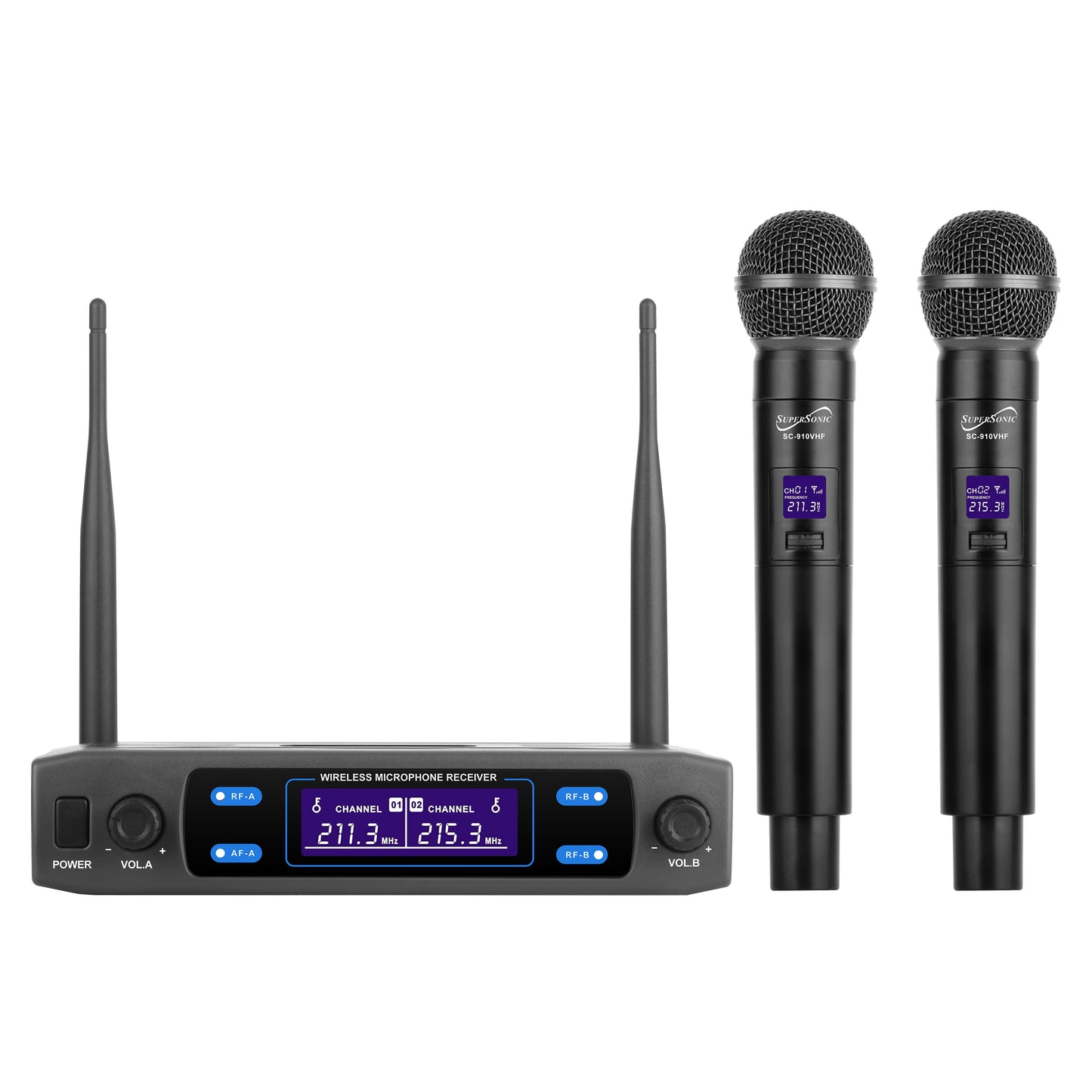

VHF Dual Fixed Channel Wireless Microphone System

Range: Up to 100 FT (line of sight)

• Transmitter:
  • LED Status Signal Indicator
  • Frequency Range: 190-216MHz
  • Frequency Response: 50Hz- 15KHz
  • Current Consumption: 120 mA
  • S/N Ratio: 89 dB
  • Bandwidth: 150KHz
  • Transmitter Power: 10dBm
  • Data Rate: 200Kbps

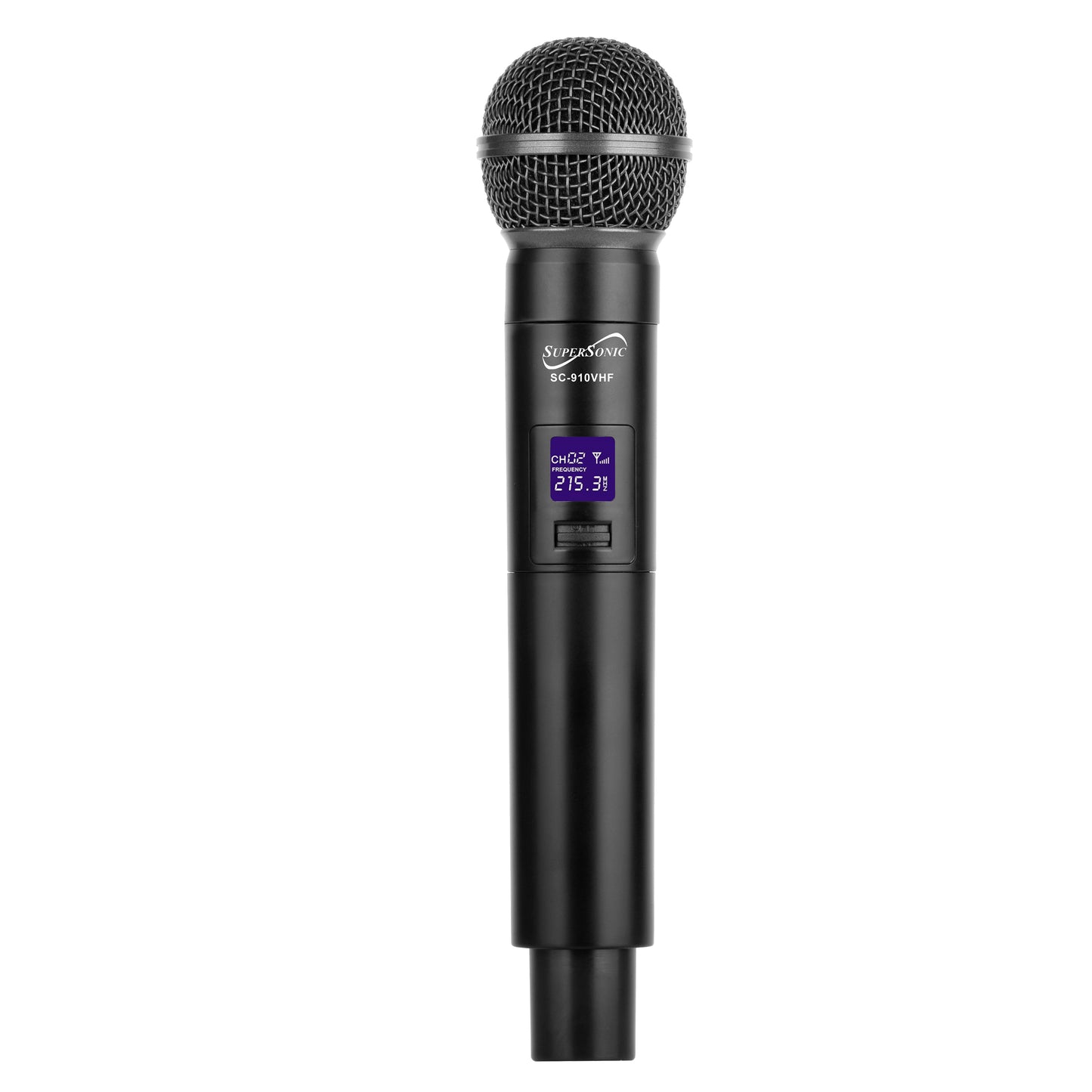

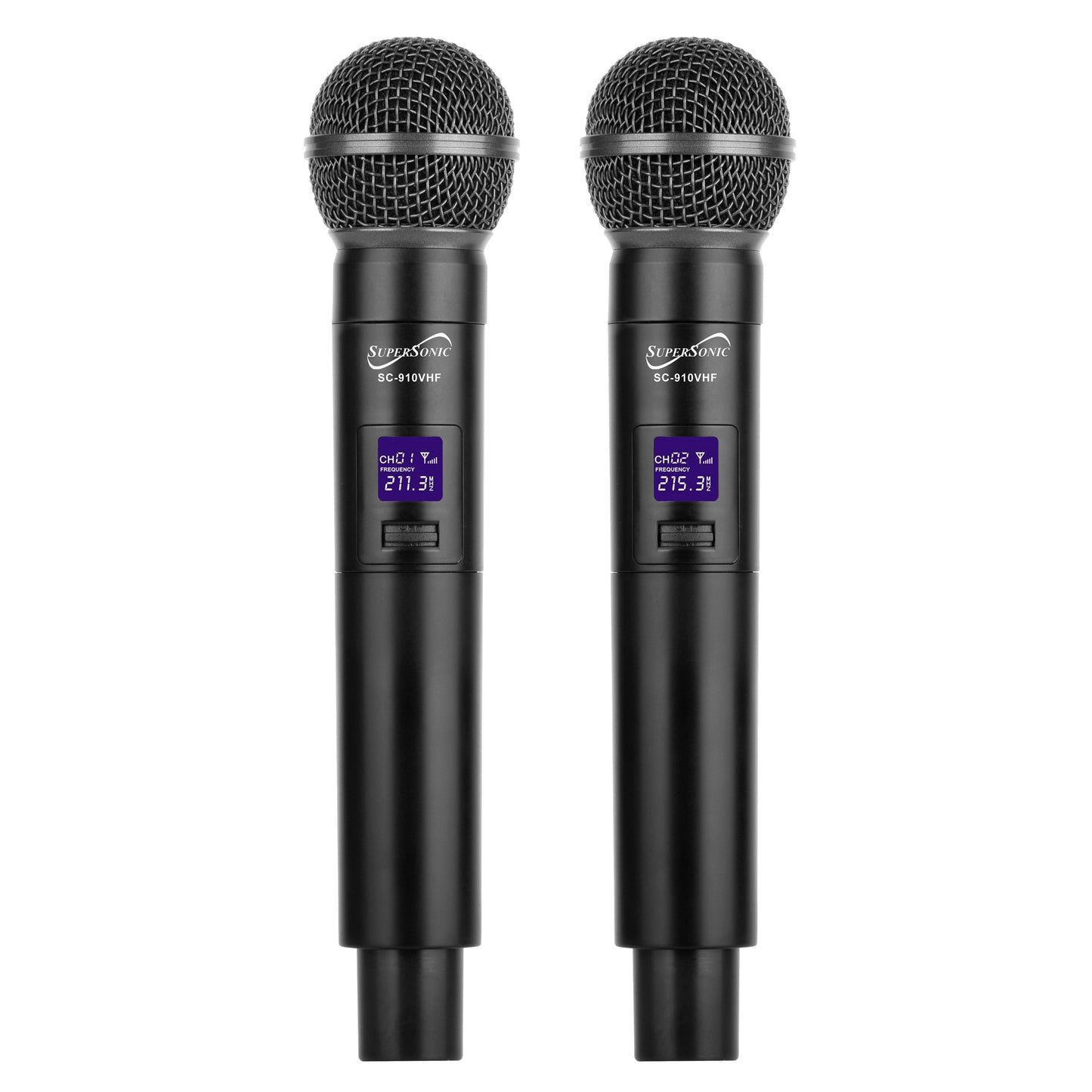

  • Two Handheld Dynamic Transmitter Microphones
  • Up to 4 Hours of Wireless Operation on (4) AA batteries (Alkaline Batteries Included)

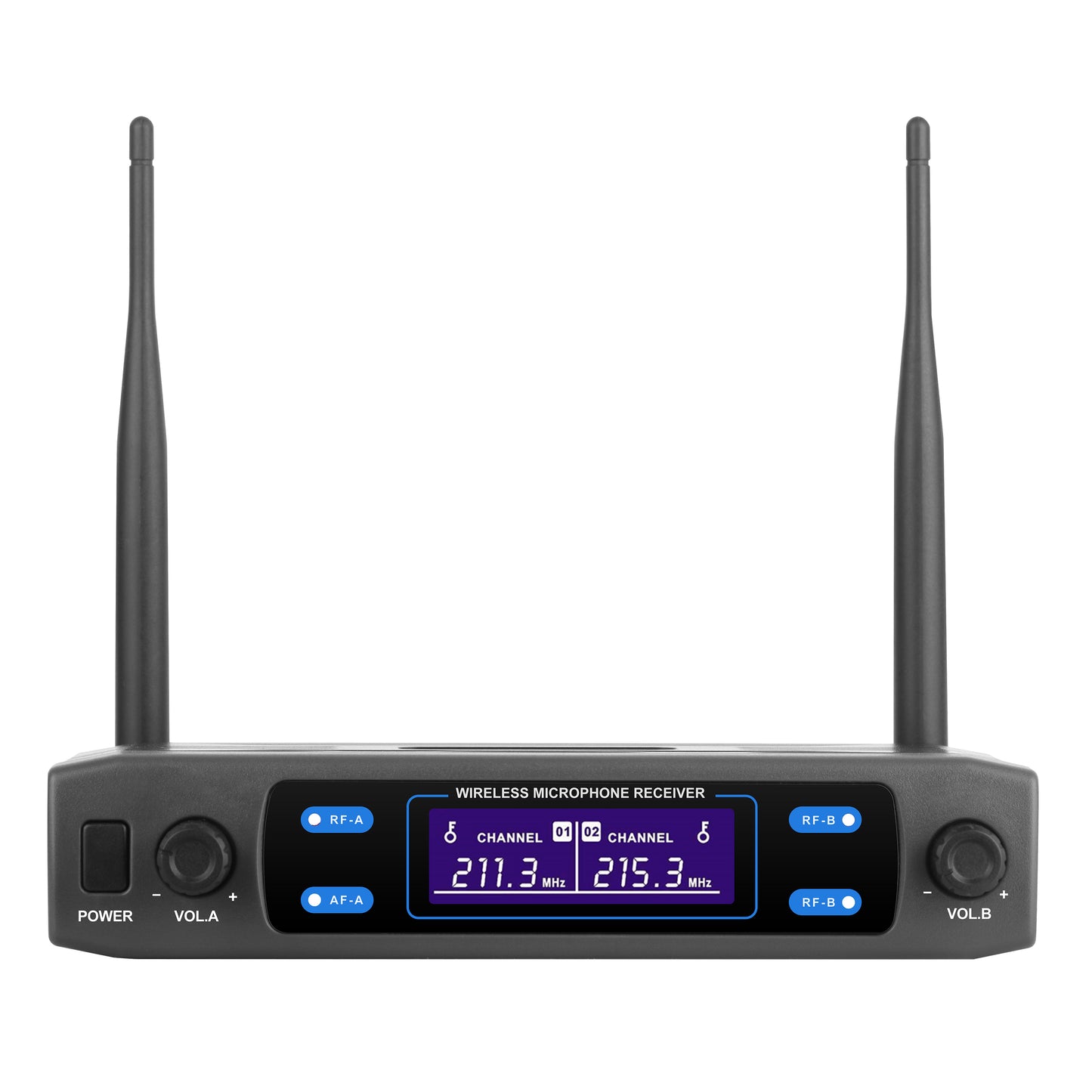

• Receiver:
  • LED Status Signal Indicator
  • Dual Independent Antenna
  • Frequency Range: 190 -216MHz
  • Frequency Response: 50Hz- 15KHz
  • Max. Deviation Range: +30KHz
  • Sensitivity: -93dB
  • T.H.D.: <0.15%
  • S/N Ratio: 43μ V
  • Mix Output: 330mV
  • Balance Output: 320 mV

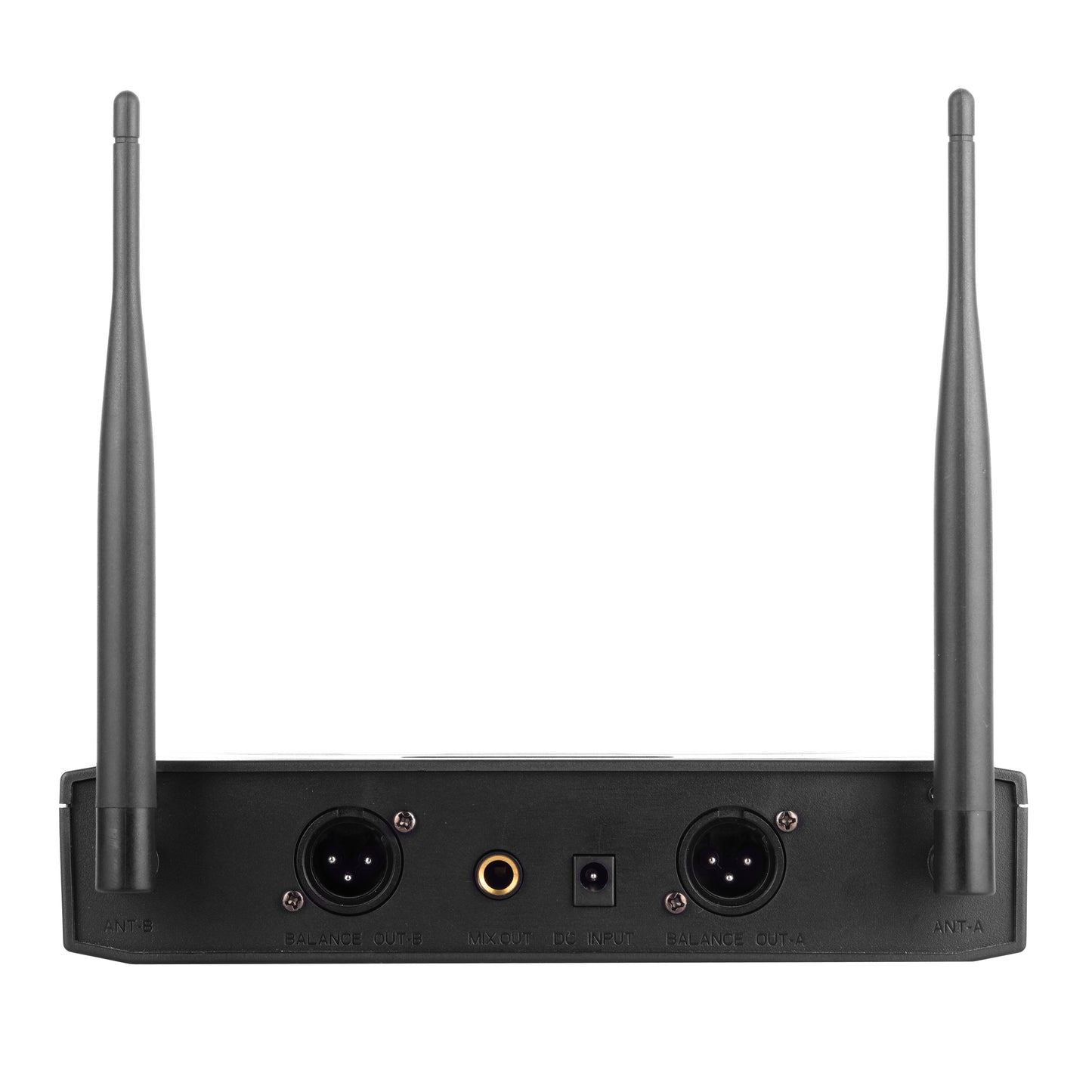

  • 2 XLR Output
  • 1/4 Mixed Output
  • Modulation Mode: FM
  • Operation Temperature : -10°C ~+50°C

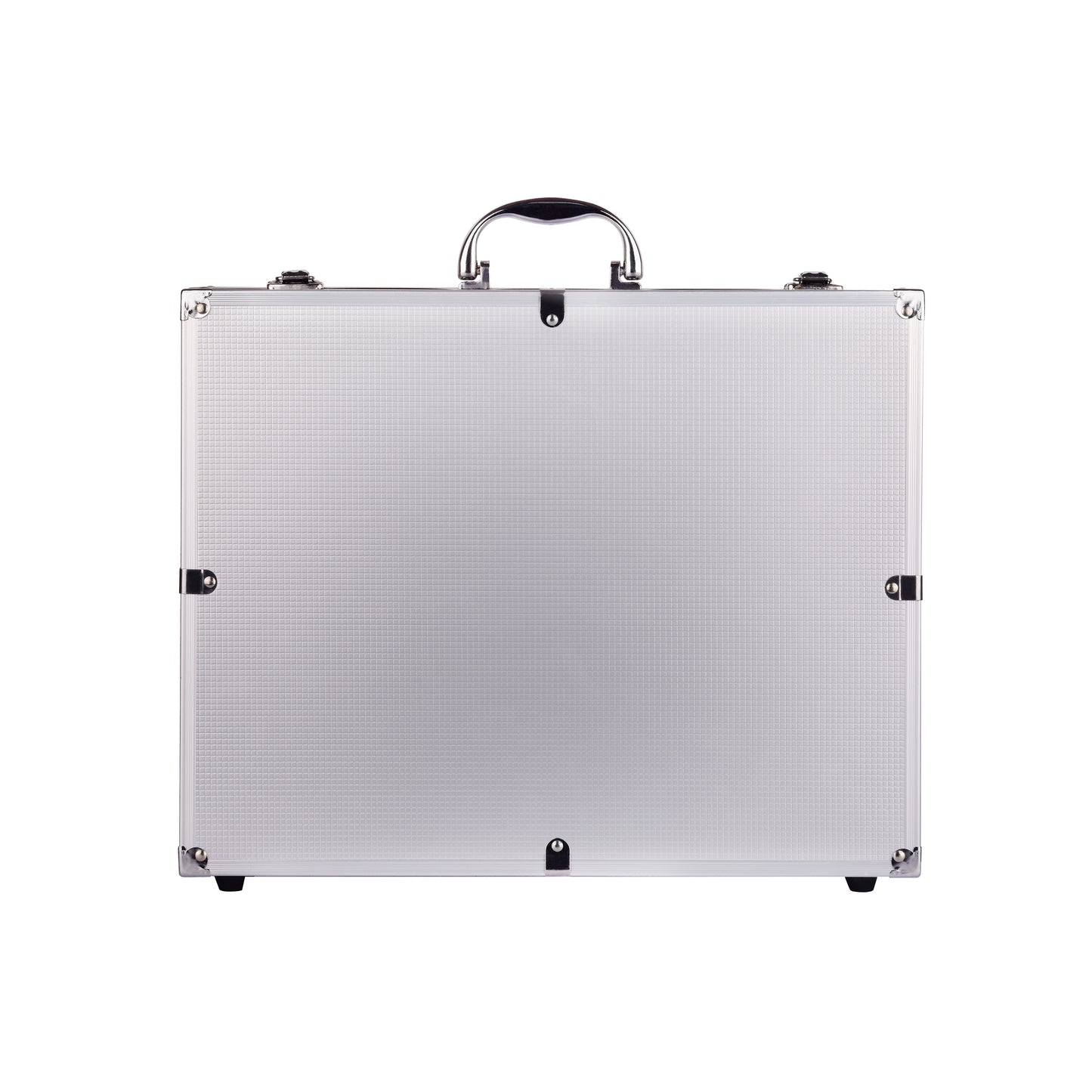

Accessories: 1/4 Mono Cable, DC Power Adapter, (4) 1.5V AA Battery, Aluminum Carrying Case and Manual
