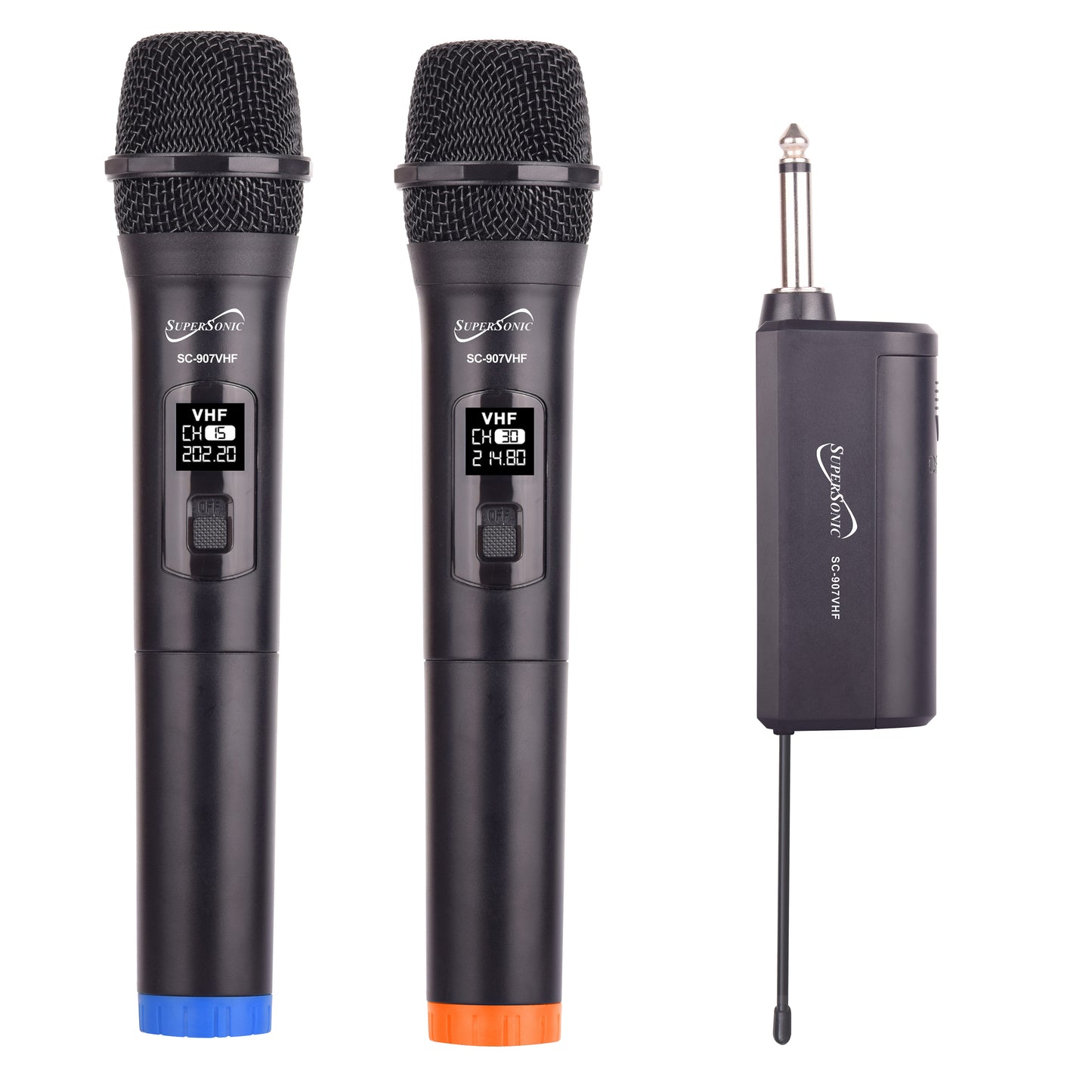

VHF Dual Fixed Channel Wireless Microphone System
VHF Dual Fixed Channel Wireless Microphone System
Model #SKU:SC-907VHF
Share:
- OVERVIEW
- DISTRIBUTOR SPECS
- DOWNLOADS
-

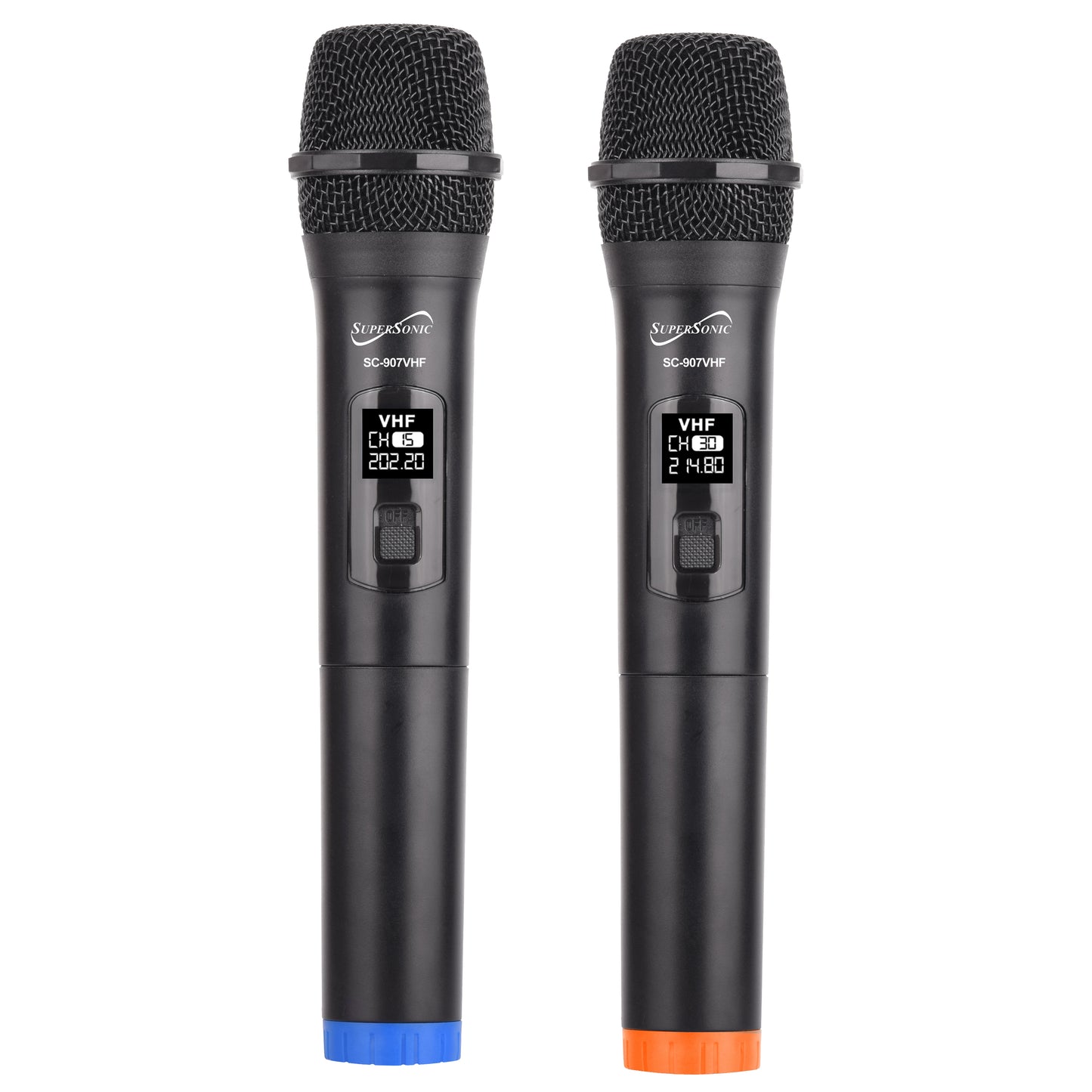

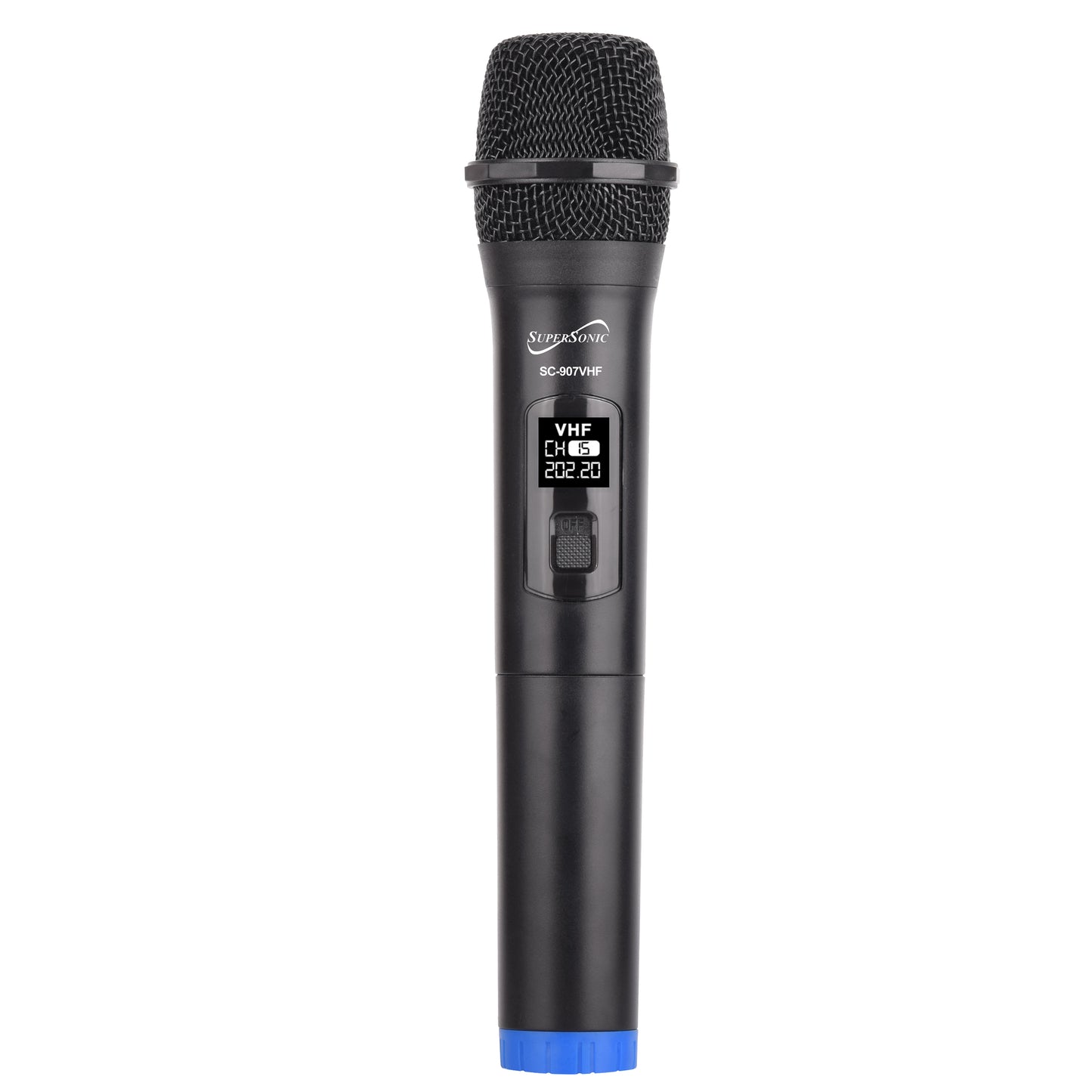

Transmitter:
- LED Status Signal Indicator
- Frequency Range: 190-216MHz
- Frequency Response: 40Hz- 18KHz
- Stability: +10ppm
- Transmitter Power: 8dBm
- T.H.D:<1%
- Two Handheld Dynamic Transmitter Microphones
- Power Supply: 3V ( Two 1.5V AA batteries)
-

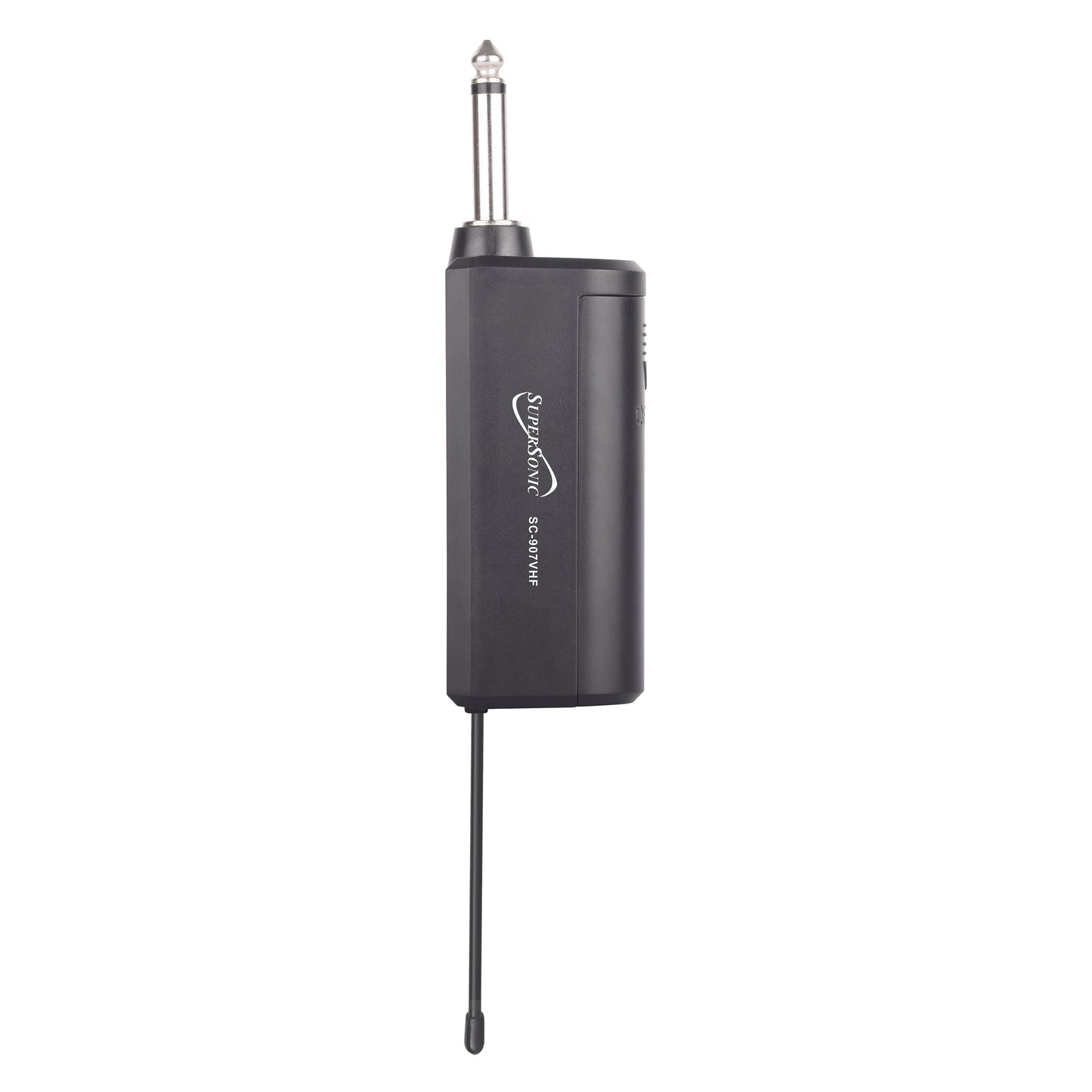

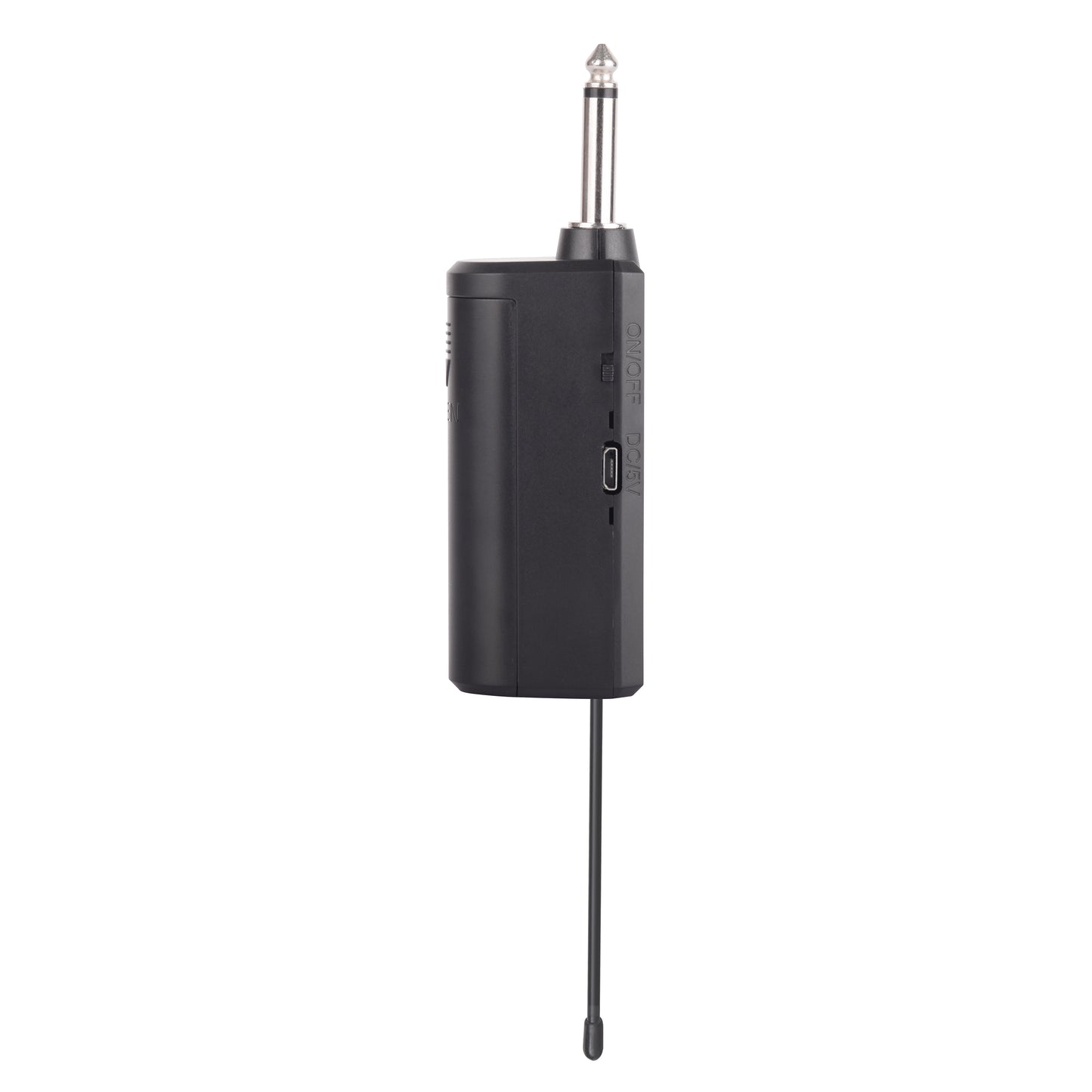

Receiver:
- 6.35 mm Input
- Frequency Range: 190-216MHz
- Frequency Response: 40Hz- 18KHz
- Stability: +10ppm
- Sensitivity: -95dBm— -71dBm
- T.H.D:<1%
- S/N Ratio: >90dB
- Up to 4 Hours of Wireless Operation with Rechargeable Battery
Accessories: (2)1.5V AA Battery, USB Charging Cable, One Rechargeable Battery and Manual
Size | |
---|---|
Black Unit UPC | 639131209077 |
Black Master UPC | 10639131209074 |
Receiver Dimensions (in) | 9.84 x 0.984 x 1.38” |
Receiver Weight (lbs) | 0.077 |
Microphone Dimensions (in) | 2.01 x 9.45 |
Microphone Weight (lbs) | 0.385 |
Giftbox Dimensions (in) | 7.75 x 2.5 x 12.0 |
Giftbox Weight (lbs) | 1.05 |
Master Dimensions (in) | 13.0 x 12.75 x 16.75 |
Master Weight (lbs) | 14.20 |
Master Case QTY | 10 |
Spec sheet | Download |
