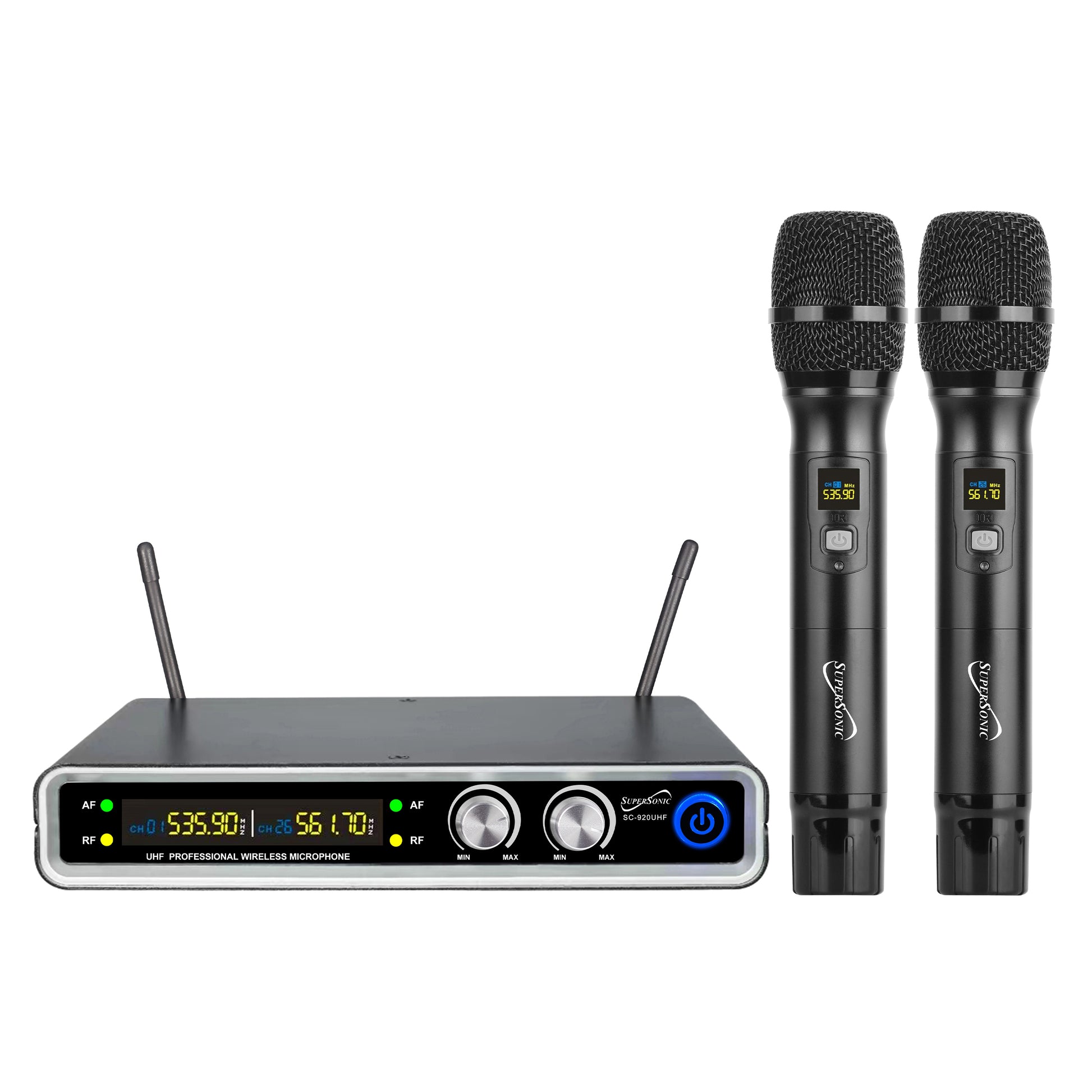

UHF Dual Fixed Channel Wireless Microphone System

UHF Dual Fixed Channel Wireless Microphone System

Model #SKU:SC-920UHF

Color
  • OVERVIEW
  • DISTRIBUTOR SPECS
  • DOWNLOADS

Range: Up to 200 FT (line of sight)

  • Transmitter:
    • LED Status Signal Indicator
    • Frequency Range: 470-580 MHz
    • Frequency Response: 50Hz- 16KHz
    • Current Consumption: 130 mA
    • S/N Ratio: 91 dB
    • Bandwidth: 600 KHz
    • Transmitter Power: 8 dBm
    • Data Rate: 204.8 Kbps

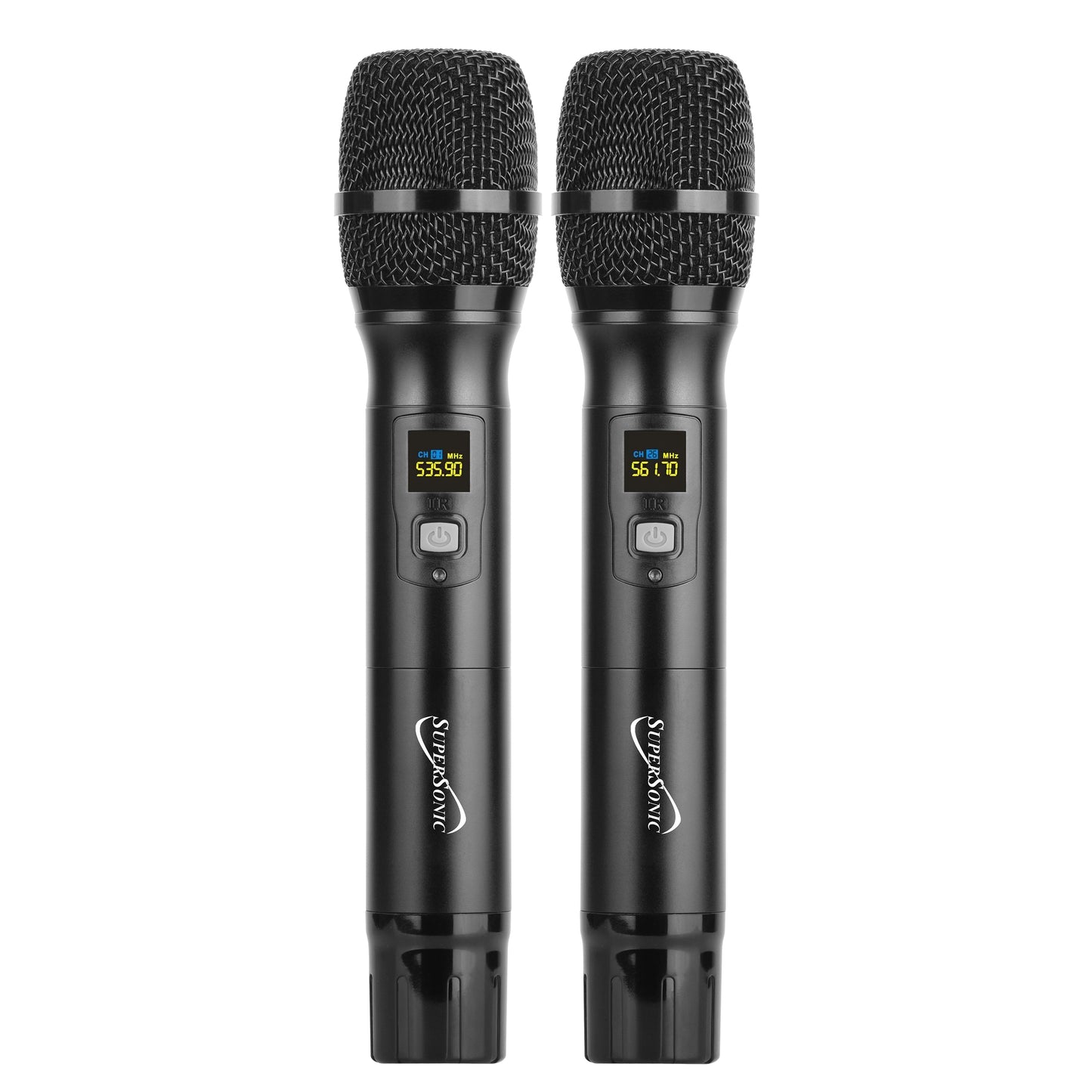

    • Two Handheld Dynamic Aluminum Transmitter Microphones
    • Up to 4 Hours of Wireless Operation on (4) AA batteries

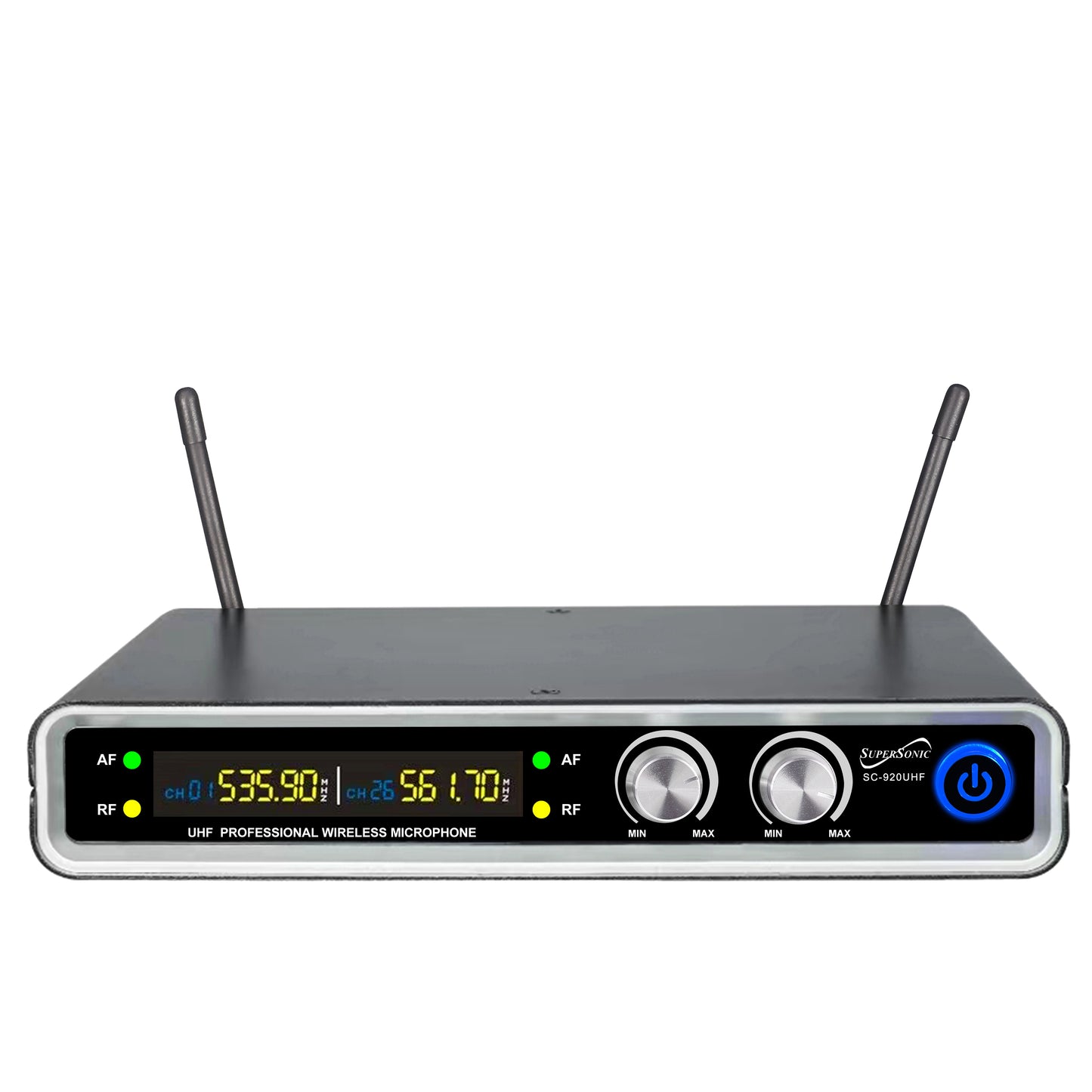

  • Receiver:
    • LED Status Signal Indicator
    • Dual Independent Antenna
    • Frequency Range: 470 - 580 MHz
    • Frequency Response: 50Hz- 16KHz
    • Sensitivity: -90dB
    • T.H.D.: <0.5%
    • S/N Ratio: 37μ V
    • Mix Output: 300mV
    • Balance Output: 150 mV

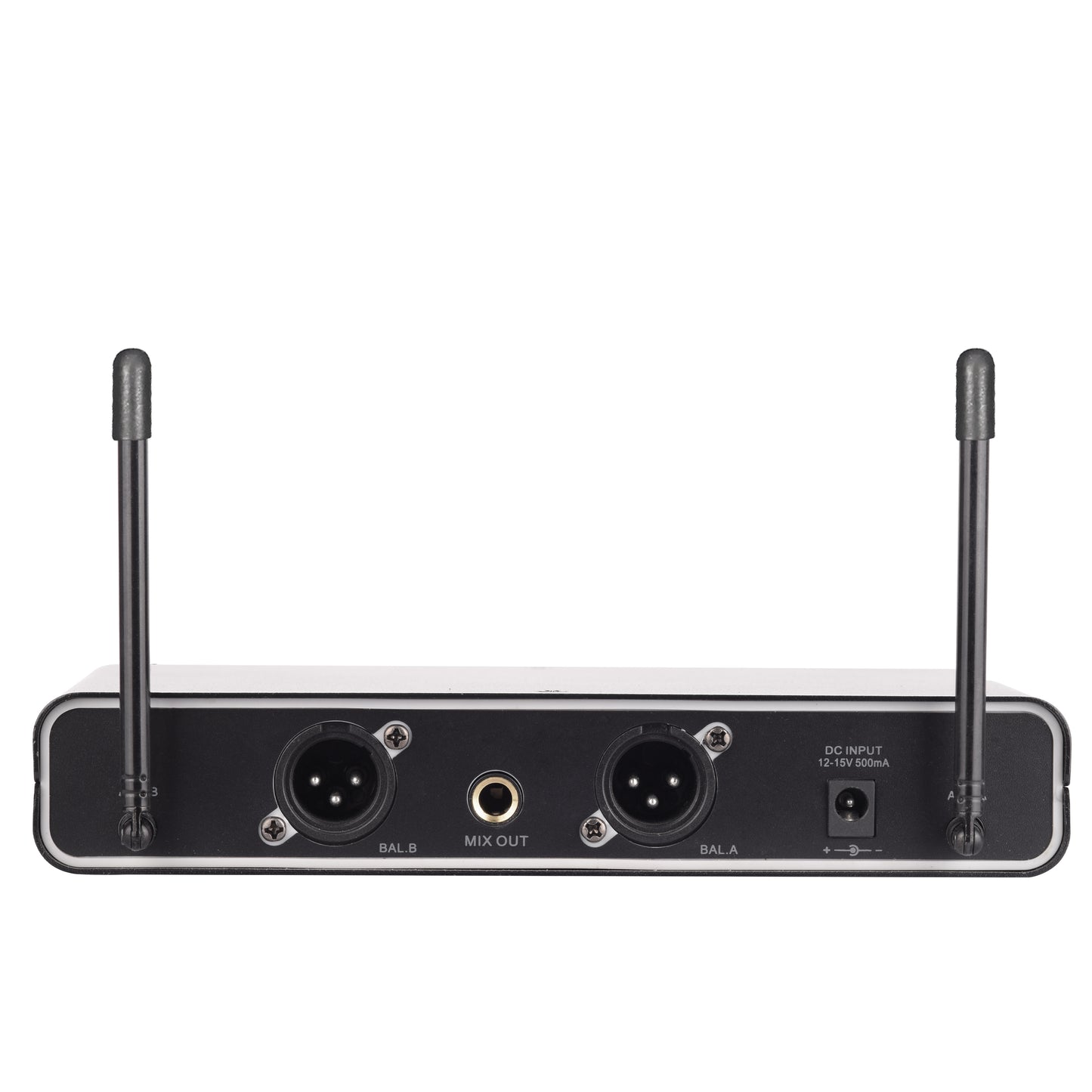

    • 2 XLR Output
    • 1/4 Mixed Output
    • Power Supply: 12-15 V

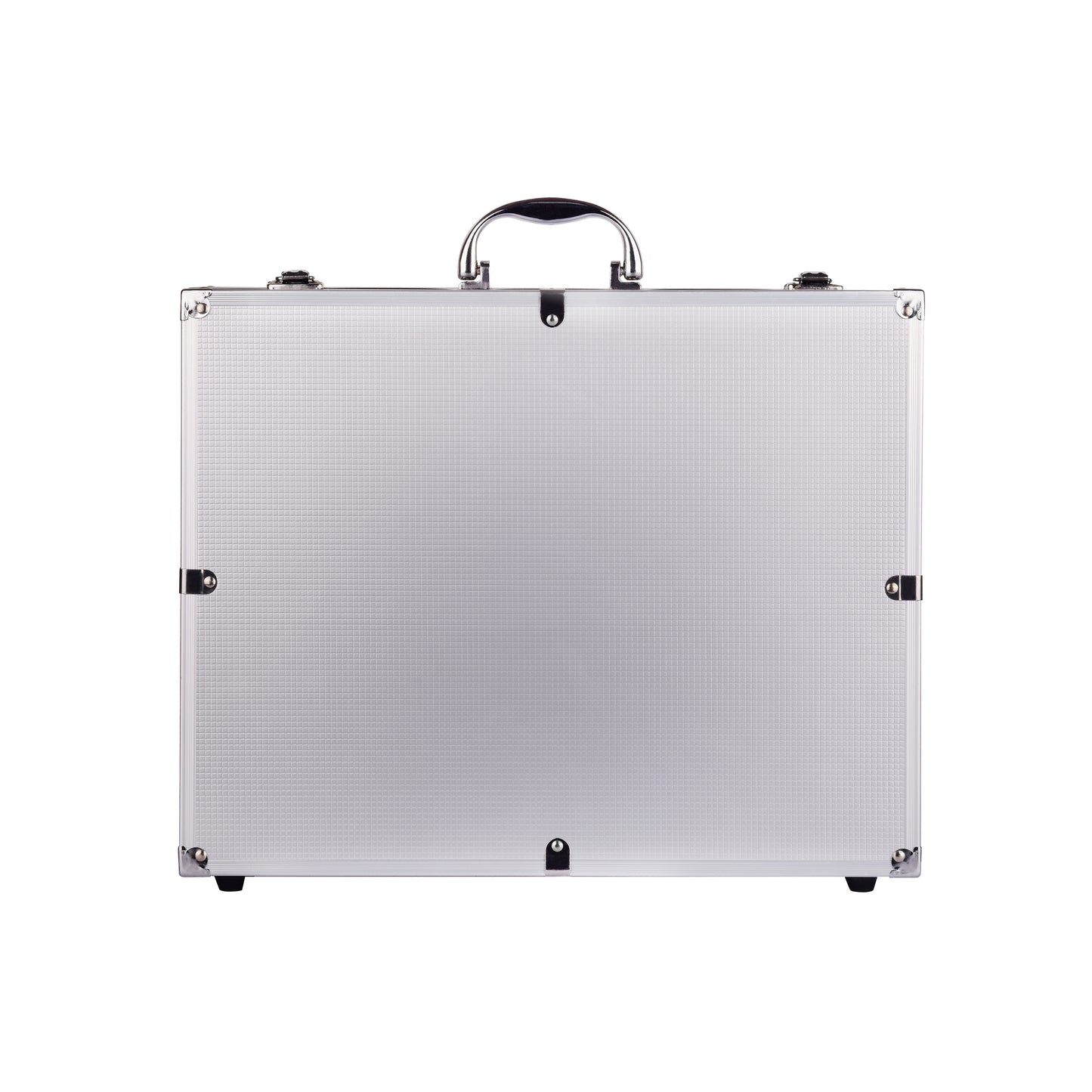

Accessories: 1/4 Mono Cable, DC Power Adapter, (4) 1.5V AA Battery, Aluminum Carrying Case and Manual

Size
Black Unit UPC 639131209206
Black Master UPC 10639131209203
Receiver Dimensions (in) 7.87 X 6.5 X 1.38
Receiver Weight (lbs) 1.5
Microphone Dimensions (in) 2.05 x 9.72
Microphone Weight (lbs) 0.66
Giftbox Dimensions (in) 5.59X4.06X13.31
Giftbox Weight (lbs) 6.15
Master Dimensions (in) 21.5 x 17.0 x 14.25
Master Weight (lbs) 33.85
Master Case QTY 5
Spec sheet Download
